Features：
1.Constant power output per meter
2.Automation implicit joining together
3.Resistance to chemical corrosion
4.Thicken metal electromagnetic shielding
5.Sheath layer and the aluminum foil adhesive completely submarine cable production technology
6.Easy for assemble
Technical parameters：
1.Nominal voltage:300v/500v
2.Element power:300W-3150W
3.Linear load:18.5W/M、17W/M (can be adjusted by the customer require ment)
4.Series impedance
5.Maximum continuous operating temperature for PVC layer: 65°C ( 149° F)
6.Minimum bending radius :5D
7.Wire resistance tolerance：-5%〜+10%

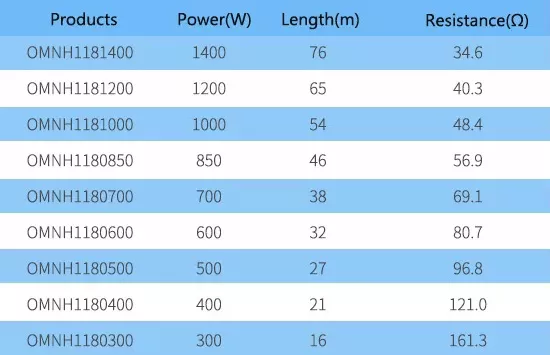

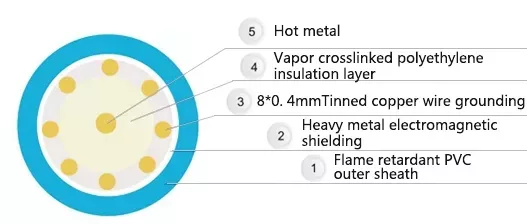

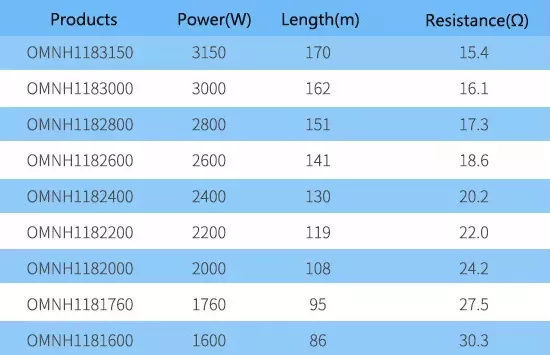

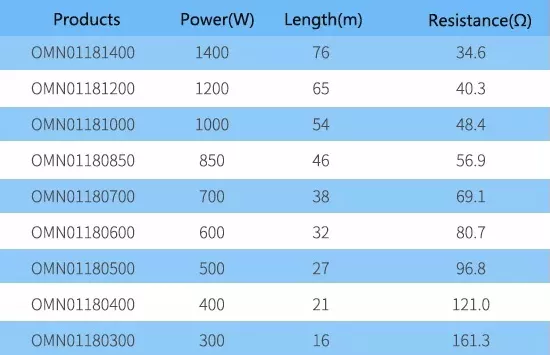

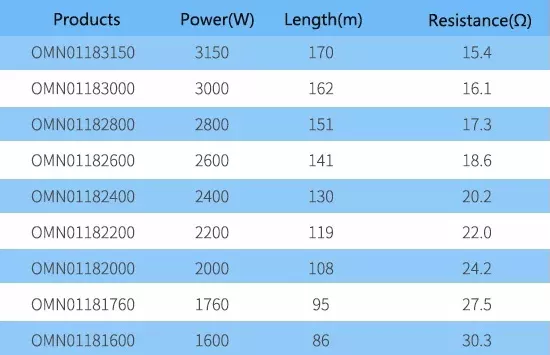

Product Structure and Technical Parameters

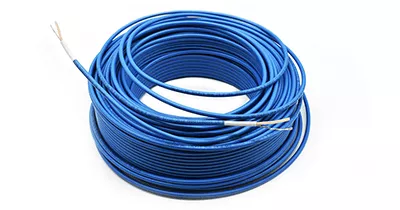

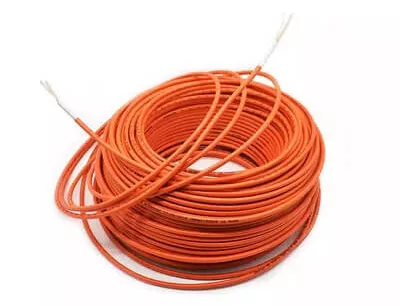

Omunuo TXLP Single Conductor Heating Cables
(220V 18.5W)
Features：
1.Constant power output per meter
2.Automation implicit joining together
3.Resistance to chemical corrosion
4.Thicken metal electromagnetic shielding
5.Sheath layer and the aluminum foil adhesive completely submarine cable production technology
6.Easy for assemble
Technical parameters：
1.Nominal voltage:300v/500v
2.Element power:300W-3150W
3.Linear load:18.5W/M、17W/M (can be adjusted by the customer require ment)
4.Series impedance
5.Maximum continuous operating temperature for PVC layer: 65°C ( 149° F)
6.Minimum bending radius :5D 7.Wire resistance tolerance：-5%〜-10%

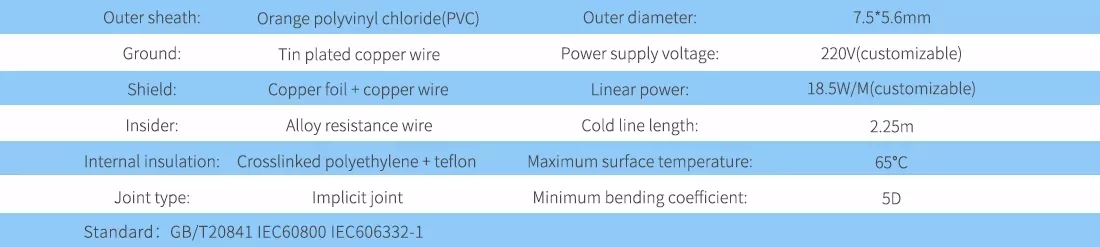

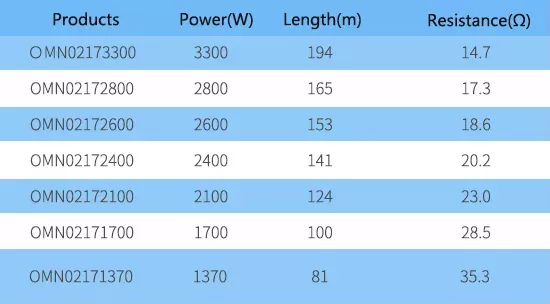

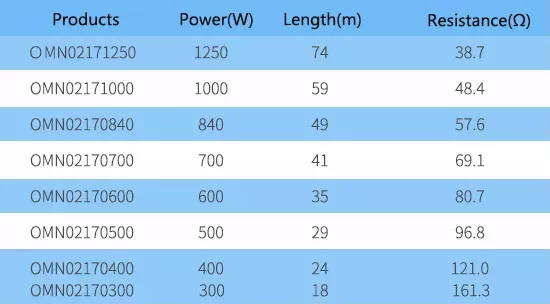

Product Structure and Technical Parameters

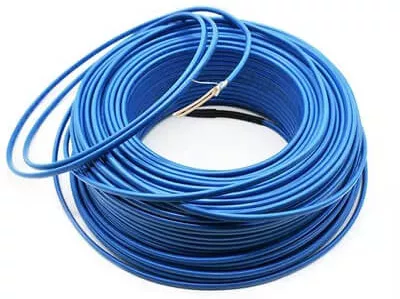

Omunuo TXLP Double Conductor Heating Cables
(220V 17W)
Features：
1.Constant power output per meter
2.Automation implicit joining together
3.Resistance to chemical corrosion
4.Thicken metal electromagnetic shielding
5.Sheath layer and the aluminum foil adhesive completely submarine cable production technology
6.Easy for assemble
Technical parameters：
1.Nominal voltage:300v/500v
2.Element power:300W-3150W
3.Linear load:18.5W/M、17W/M (can be adjusted by the customer require ment)
4.Series impedance
5.Maximum continuous operating temperature for PVC layer: 65°C ( 149° F)
6.Minimum bending radius :5D
7.Wire resistance tolerance：-5%〜+10%
Product Structure and Technical Parameters

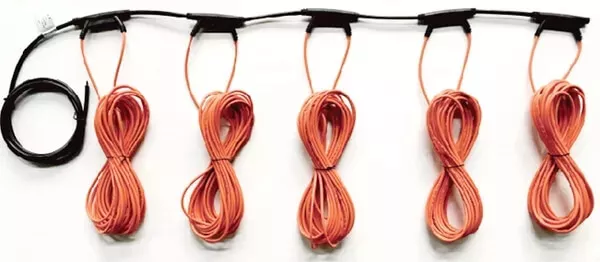

Omunuo FEP Single Conductor Heating Cables
（220V 18.5W/m）
Introduction:
1. Imported toray 24K carbon fiber filament from Japan is used. 24K is 24,000 carbon fiber filaments = resistance 17 ohms/m
2. 3 flame retardant, waterproof and high-temperature resistant layer, 5 mm in diameter
3. 1 group 12.5 meters =210W 1 group can be laid 1.5 square meters
4. The installation is very simple. Installation, carbon fiber hair hot wire between can not cross, can not be together, can not kill the bend.
Features:
1. The heating rate is fast, which can produce the infrared light of life 8um-15um needed by the human body. While heating, physical therapy and health care can be provided.
2. High electrothermal conversion efficiency, energy saving and power saving. Carbon fiber electrothermal body is a kind of black body material, the electrothermal conversion efficiency is very high, can reach 100%.
3. The tensile strength is high. Under the same allowable area of current load, the strength of carbon fiber is the highest.
4. It can effectively prevent the occurrence of fire.
5. Light weight, effectively reduce the weight of components, so as to improve the technical performance of components. Chemical stability (corrosion resistance, not easy to be oxidized), in the anaerobic state heating to 3000 degrees, its mechanical properties do not change, in the electrothermal state to overcome the PTC, silicon carbide heating body low strength, easy to oxidize burning shortcomings.
6. Long service life, the service life of carbon fiber heating cable is up to 50 years.
7. Patented sealing joint for longer service life.
Specification of K- head 24K-210W Carbon Fiber Heating Cable
OMNKD24K-1 (210W/group 210W)
OMNKD24K-2(210W/group 420W)
OMNKD24K-3(210W/group 630W)
OMNKD24K-4(210W/group 840W)
OMNKD24K-5(210W/group 1050W)
OMNKD24K-6(210W/group 1260W)
OMNKD24K-7(210W/group 1470W)
OMNKD24K-8(210W/group 1680W）
OMNKD24K-9(210W/group 1890W)
OMNKD24K-10(210W/group 2100W)
OMNKD24K-11(210W/group 2310W)
OMNKD24K-12(210W/group 2520W)
OMNKD24K-13(210W/group 2730W)
OMNKD24K-14(210W/group 2940W)
OMNKD24K-15(210W/group 3150W)
Specification of T- head 24K-210W Carbon Fiber Heating Cable
OMNTD24K-1(210W/group 210W)
OMNTD24K-2(210W/group 420W)
OMNTD24K-3(210W/group 630W)
OMNTD24K-4(210W/group 840W)
OMNTD24K-5(210W/group 1050W)
OMNTD24K-6(210W/group 1260W)
OMNTD24K-7(210W/group 1470W)
OMNTD24K-8(210W/group 1680W)
OMNTD24K-9 (210W/group 1890W)
OMNTD24K-10(210W/group 2100W)
OMNTD24K-11(210W/group 2310W)
OMNTD24K-12(210W/group 2520W)
OMNTD24K-13(210W/group 2730W)
OMNTD24K-14(210W/group 2940W)
OMNTD24K-15 (210W/group 3150W)
Installation procedure:
1. Clean the paved area.
2. Stores on the ground shall be equipped with insulation materials and special geothermal insulation boards.
3. Put a special reflective film on the adiabatic material to reflect the heat.
4. Lay a layer of steel wire mesh on the reflection film, in order to prevent the installed hot cable from being pressed into the insulation material and play the role of strengthening the compressive strength of the ground.
5. According to the heating cable layout designed in advance, lay the heating section of the heating cable on the wire net evenly from the power terminal. The heating cable shall not be overlapped, and then cover and cover the heating cable with concrete evenly.
6. Install floor heating thermostat, and finally lay floor tile, floor and other decorative materials.
Calculation formula of cable group number:
Room area x power per square = total power
Total power ÷ single-phase power = number of groups
Note: when the calculation result of the number of carbon fiber heating cable sets is decimal, the number shall be rounded to determine.
Number of thermostat:
Each thermostat can only control 28 square meters (south 28, north 30), more than the need to increase the number of thermostat.
